Project Description

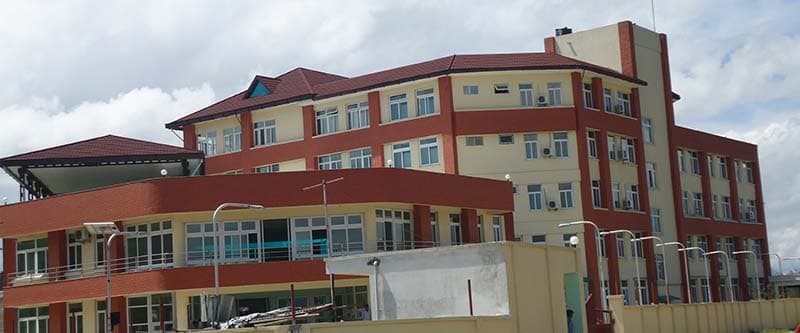

Ashish Nirman Sewa successfully completed the Construction of Children's Eye/Ear Hospital and Rehabilitation Services Building at Manohara Land Pooling Area, Bhaktapur for B.P. Eye Foundation, Maharajgunj, Kathmandu.
The project included structure, finishing, electrical, water supply, and sanitary works for a six-storey frame structure hospital building with basement, operation theatres, water storage, deep boring, and specialized hospital service systems.
The building was completed and transferred to the employer on 9 December 2011, with the completed works certified by B.P. Eye Foundation on 28 January 2013.
Key Works
Building Type: Six-storey frame structure hospital building
Basement Work: 1,285.00 Sqm
Total Floor Area: 7,900.00 Sqm
Water Tank Capacity: 100,000 liters
Deep Boring: 250 m deep, 6 inch dia. bore hole
Operation Theatres: 4 fully operated OTs with oxygen, vacuum and nitrous oxide system
M20 Grade Concrete Work: 4,133.78 Cum
Brickworks: 1,614.97 Cum
UPVC Door/Window: 1,909.47 Sqm
Marble & Tiling Works: 13,326.74 Sqm
Structural Steel Works: 36.80 Tons
Steel Reinforcement: 579.76 Tons
Formwork: 17,541.31 Sqm
Sound Proof Acoustic Works: 421.94 Sqm
Water Proofing Works: 2,140.00 Sqm
