Project Information

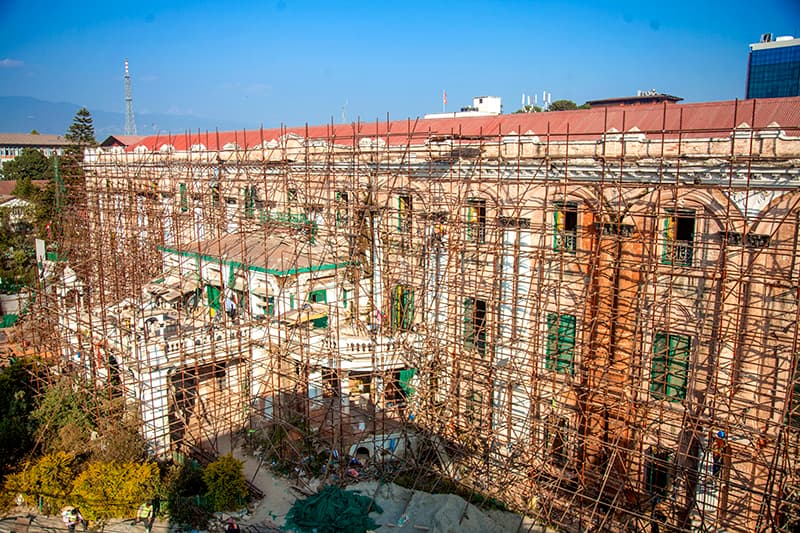

Retrofitting of Office Building of DOR

Public Buildings

Project Description

Ashish Nirman Sewa, as part of M/S GCGC-Ashish-Samanantar JV, substantially completed the Retrofitting of Office Building of Department of Roads at Babarmahal, Kathmandu under the Central Level Project Implementation Unit (Building and Housing).

The project covered dismantling and demolition of existing finishes and structural elements, followed by whole-building retrofitting using carbon fibre reinforced polymer laminates, glass fibre sheet with fibre anchors, micro piling, MS plate anchoring, MS angle bracing, lime surkhi plaster, heritage finishes, MEP, firefighting, fire alarm, CCTV, HVAC VRF, PA systems, landscaping, fountain, and interior works.

The work was completed on 2 May 2024 and was under defects liability period when certified on 10 January 2025.

Key Works

Total Floor Area: 13,327.64 Sqm
Plinth Area: 4,550.50 Sqm
Micro Piling Works (150 mm dia): 2,615.00 Rm
Prefabricated Carbon Fibre Reinforced Polymer Laminates: 12,316.82 Rm
Glass Fibre Sheet with Fibre Anchor: 5,885.40 Sqm
MS Plate Anchor: 481,272.10
MS Angle Bracing: 54,647.52
Plain Lime Surkhi Plaster: 32,603.20 Sqm
Telia Clay Tile: 5,716.27 Sqm
CGI Sheet Roofing: 6,241.64 Sqm
10 mm Fiber Cement Board: 5,562.90 Sqm
Modular Furniture Works: NRs. 78,207,000.00
